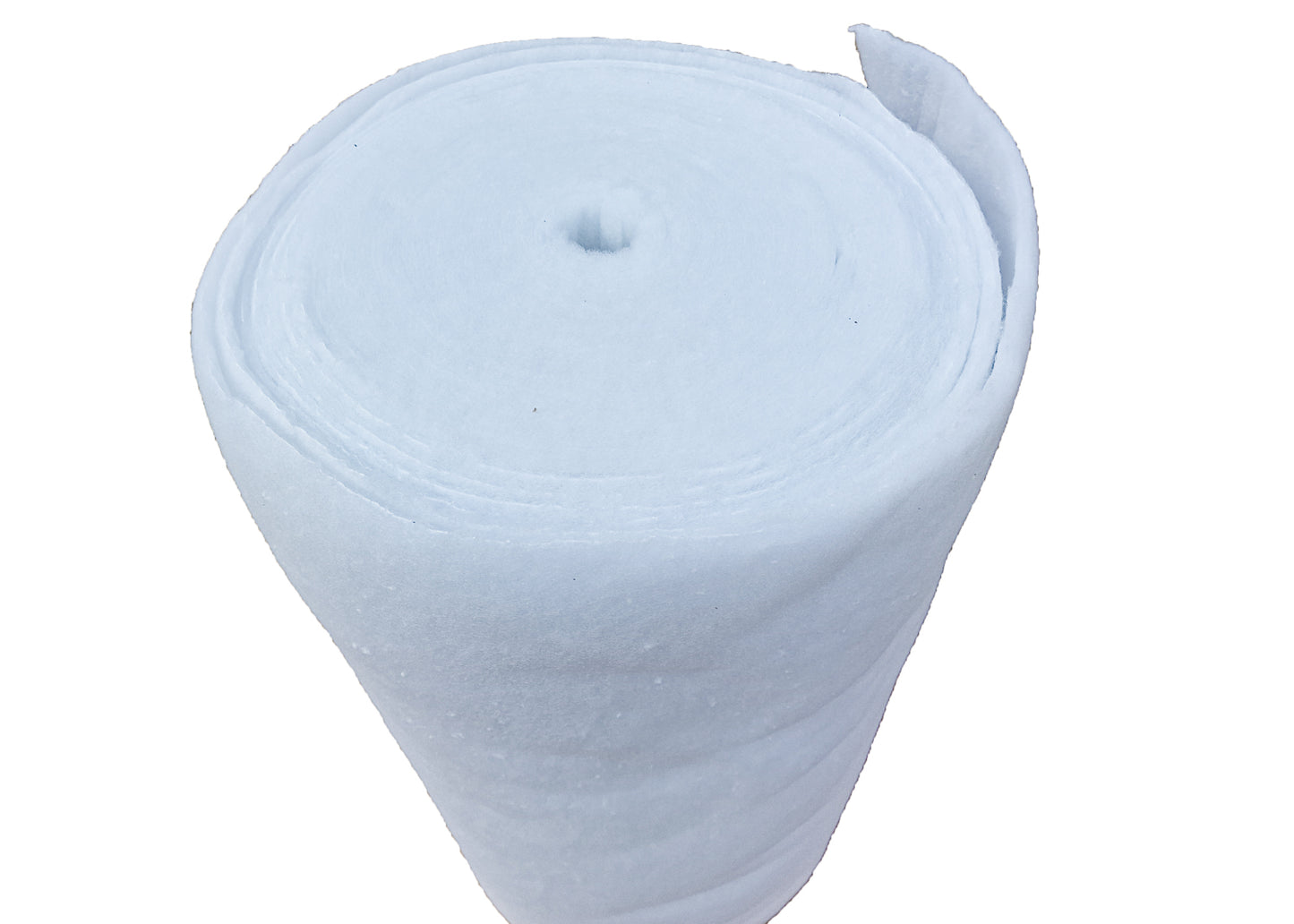

• a photo of our synthetic air filter that is supplied on a roll and can be cut to size.

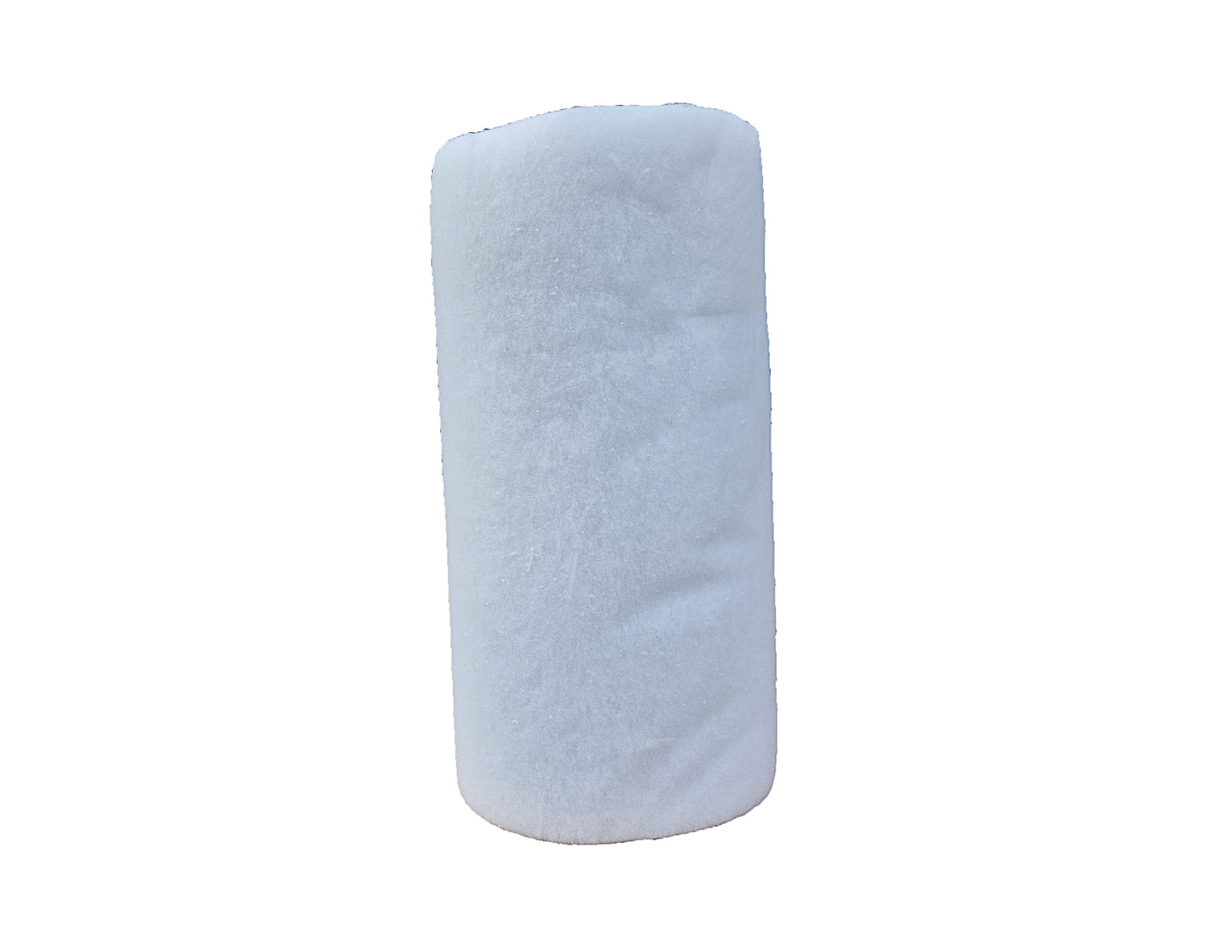

  • photo showing a 2 metre high roll of air filtration material
1 2

Promedia Air Filter

Promedia Air Filter

0227

This white, polyester filtration media has a range of general filtration uses within your spray booth or product preparation areas. Promedia is supplied in a range of filtration levels making it able to be used for both extraction filtration and air input filtration.

£43.44
£43.44
Multi Discount Sold out
Shipping calculated at checkout.

+ VAT
View full details

This white, synthetic filtration media has a range of general filtration uses however it is most commonly used as secondary filtration within the extraction ducting of spray booths. However, it shouldn't be restricted to just this as the range of depths and filtration class allow it be to used as a primary extraction method for the capture of dust and even larger particles produced during a manufacturing process. It can also be used to filter the air entering an area.

The three options within our Promedia range give you different thickness, filtration class and product weight. The thickness range from around 15mm up to 20mm and the filtration class between G3 and G4.

We offer our Promedia in two standard sizes, either 1 x 20 metres or 2 x 20 metres however we can supply rolls cut to different heights and lengths so if you would prefer a bespoke size then please just let us know and we can confirm price and availability.

Product Specification

Promedia-150
Filtration Class - G3
Depth - 15mm
Weight - 150g/m2
Air Speed - 1.5m/s
Initial Pressure Drop - 27 Pa
Holding Capacity - 800g/m2

Promedia-350
Filtration Class - G4
Depth - 17mm
Weight - 200g/m2
Air Speed - 1.0m/s
Initial Pressure Drop - 25 Pa
Holding Capacity - 700g/m2

Promedia-500
Filtration Class - G4
Depth - 20mm
Weight - 300g/m2
Air Speed - 1.0m/s
Initial Pressure Drop - 45 Pa
Holding Capacity - 400g/m2

All of the information provided here and on the Technical Sheets is based on test results carried out by third parties. The information and the Technical Sheets is not a specification and all of the information is subject to normal manufacturing tolerances.

Weight - +/- 10%
Thickness - +/- 3mm
Initial Pressure Drop - +/- 15%

Technical Information

Technical Sheet - Promedia 15-500

Technical Sheet - Promedia 15-350

Technical Sheet - Promedia 15-150

Frequently Asked Questions

Can I cut this material myself?
You most certainly can. It is best cut with a good pair of scissors, rather than a knife, and you will find it easy to both mark and cut. This means that you can easily cut you own filter pads should you not need the material only in its rolled form.

Can you supply this in pads?
We can supply any of the Promedia materials in bespoke sized pads. Once again, just contact us and we will confirm price and delivery time.

Why does the quoted depth vary for the material?
The actual depth of the material can vary slightly between batches which is why we give the depth range in the product information. This variation will not have any detrimental effect upon the filtration quality of the product as this is determined by the dry weight per square meter, rather than the thickness, and this will not vary between batches.
