Fan Coil Filter - Washable

2305

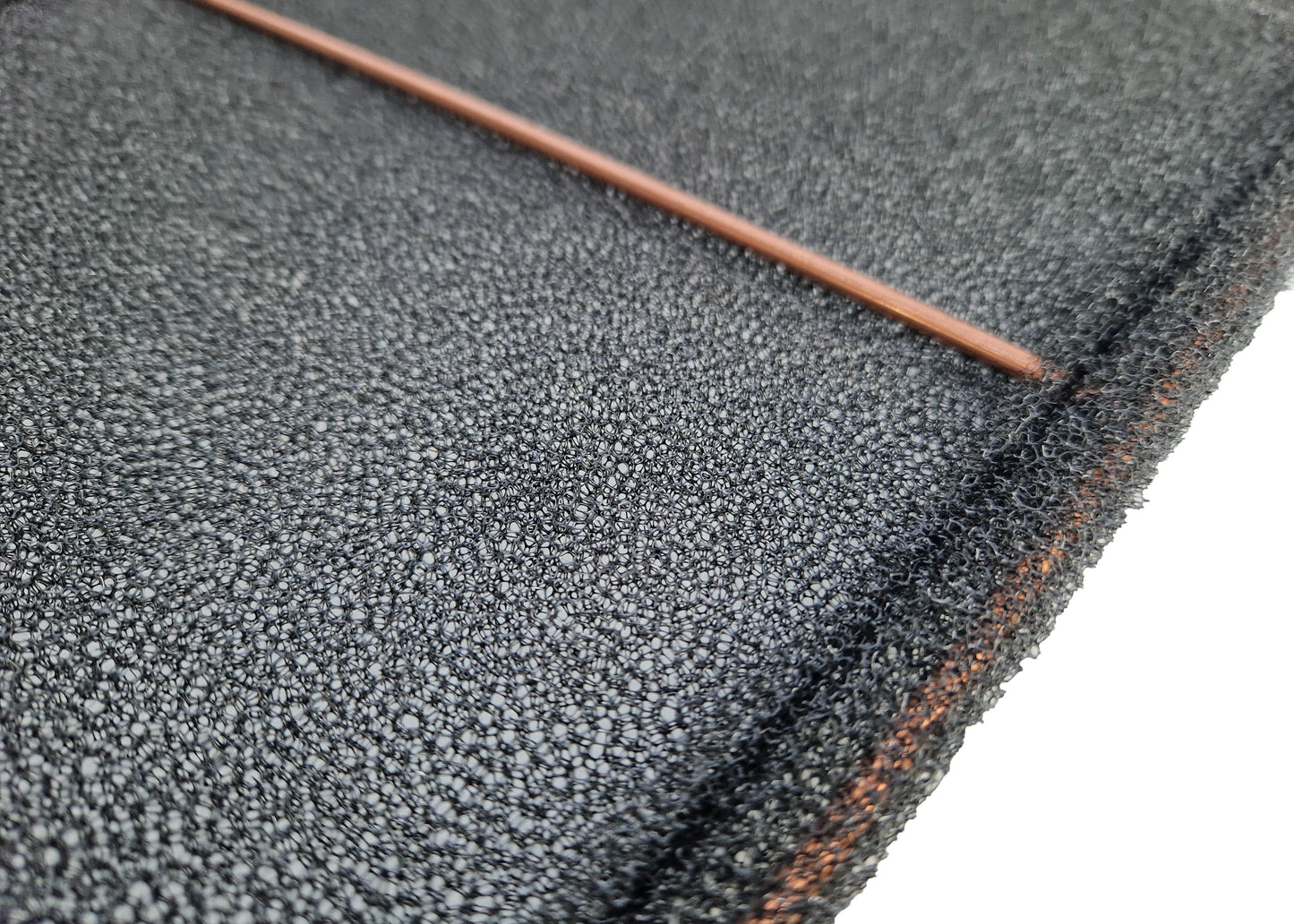

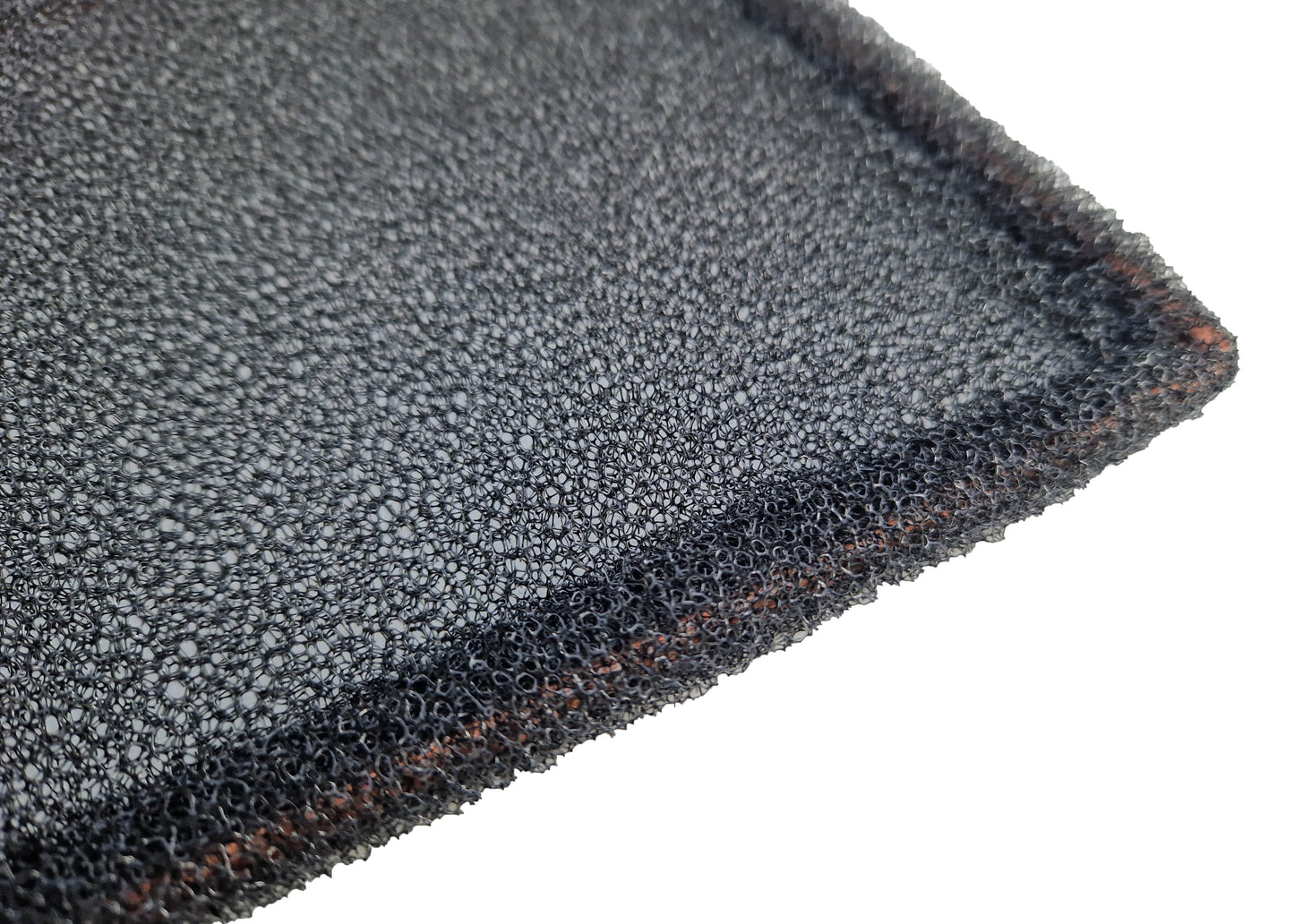

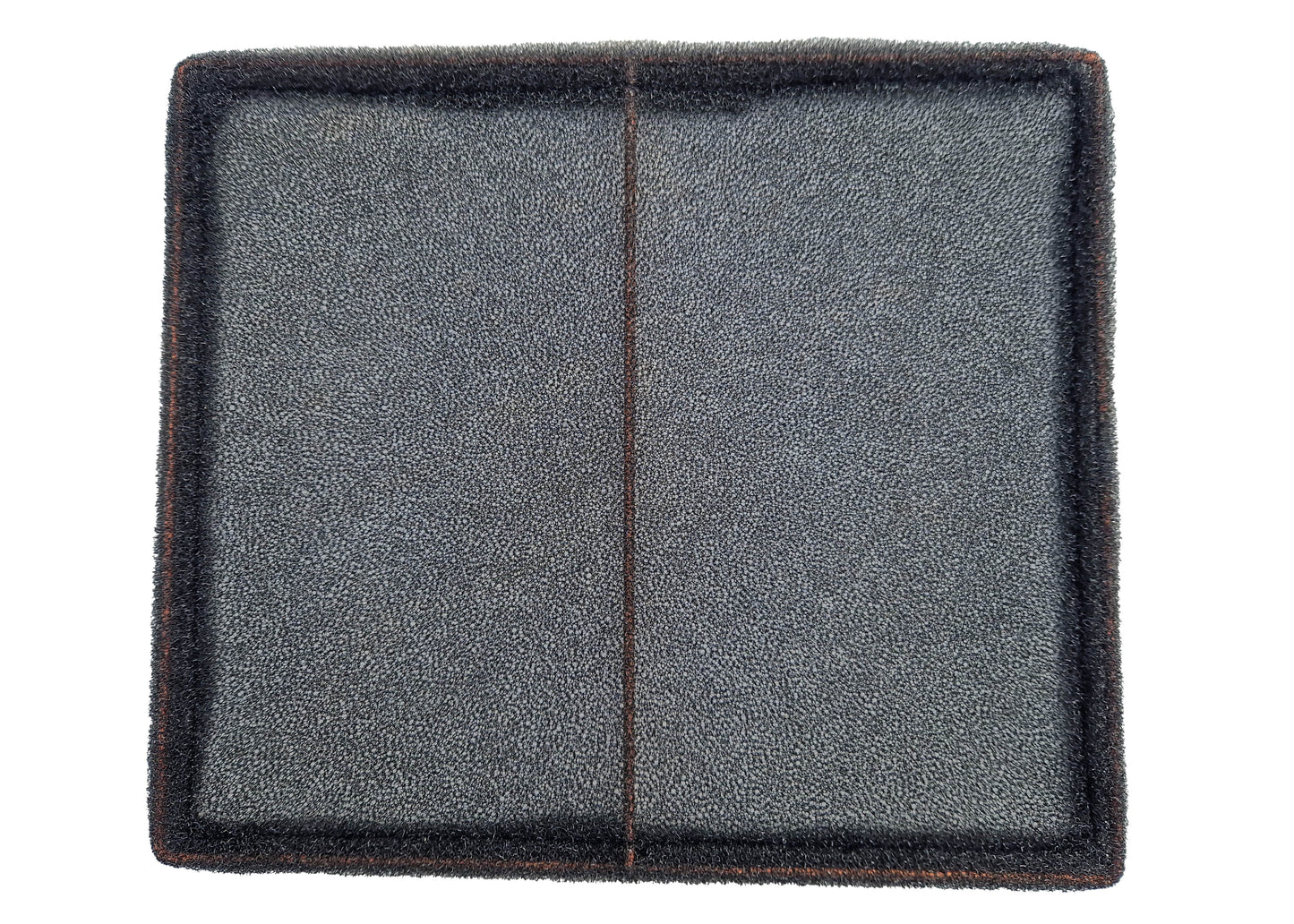

These filters have a wire frame that holds a synthetic, washable filtration media designed to operate at a minimum pressure drop to ensure the lowest possible restriction to airflow in fan coil units, spray booths etc.  These filters are Classified ISO Coarse 35%, 20ppi.

If you don't see the size of filter that you require then please just contact us as we can make these frames to your exact measurements.


Size (H x W)
Thickness
Regular price £12.40
/
+ VAT

Thanks for subscribing

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • Hurry, only 10 items left!

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Why are these called slimline filters?

Quite simply because they are very thin. These measure around 10mm thick which the maximum thickness where the media wraps around the metal frame, the filtration media itself is around 4mm thick.

The size I want isn’t shown, can I have them made to my exact size?

Yes you can. We can’t put all of the sizes on the site (or rather we are not going to) so we simply list the most popular. It is quite probable that the size you want isn’t shown but all you need to do is contact us with the size you want and we will confirm the price and availability.

How many times can I wash the filter?

There isn’t really a maximum number of times, it rather depends upon how vigorous you are with you cleaning and, of course, what it is that you are removing from the filter. If you only need to gently rinse the filter under a tap then it will last far longer than if you rinse it with a pressure washer.

What will this filter from the air?

This type of filter is not designed to filter fine dust particles but rather larger particles that could cause damage to fans or unnecessarily block a finer secondary filter.

Where can I use this filter?

As long as it isn’t being used as a fine filter then it can be used in any number of applications as it has very little effect on the airflow. It can be used with anything that has a fan that needs to be protected, also air conditioning units, downdraft work benches and even spray booths.

If you feel that this type of filter would be very useful within your spray booth or product preparation area but you need to remove fine dust from the air then if you spray both of the filter faces with PRTOTECNET or PROTECNET H (you can find of these under Protective Coatings) this will help to capture the dust. They are both water-based products that stay tacky hence their ability to capture and hold dust and , being water-based products, they can be easily washed away when the filter is full.

★★★★★
★★★★★
★★★★★
