Progiallo Paintstop

9944

Our Progiallo is a progressively built, glass fibre filter media designed for filtering and holding coarse dust particles from air extracted from within spray booths or within air conditioning equipment.  It is available in three thicknesses either 1" (30mm), 2" (60mm) or 4" (110mm) and at various roll widths.




Size
Thickness
/
+ VAT

Thanks for subscribing

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • In stock, ready to ship

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

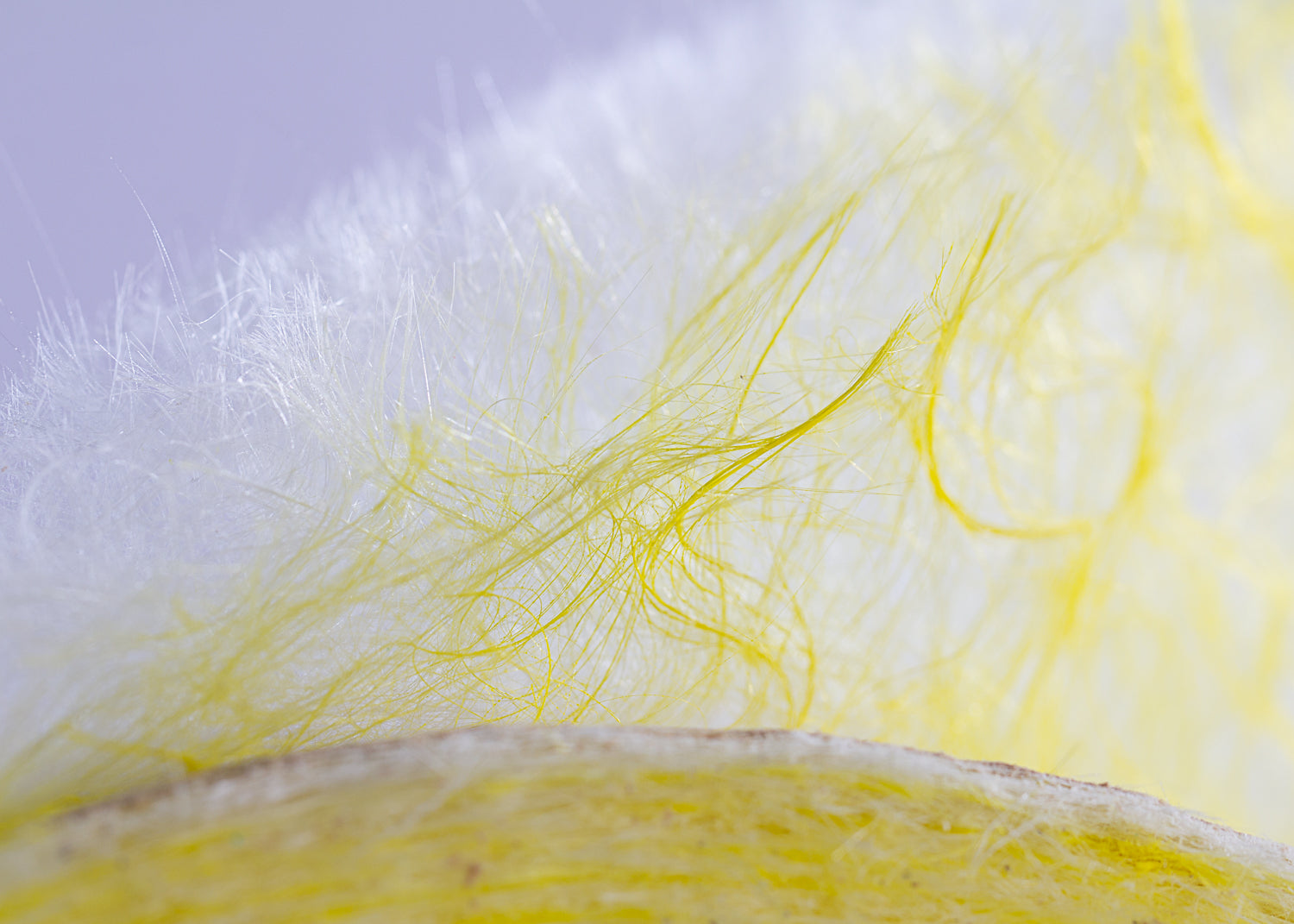

The Progiallo booth filter is impregnated with a harmless, clear gel that not only allows for the filtration of extracted air but enables the media to hold the dust particles thus improving the exhausted air quality and reducing dust emissions when changing. This can be used within spray booths as well as product preparation areas for holding not just dust particles but paint overspray as well.

Our standard Profibre rolls are not impregnated therefore do not have the same high paint holding capacity as the Progiallo. So, if you are looking to filter dusty air as well as paint overspray, and can only use fibre rolls, then the Progiallo is a better option than the Profibre. The gel also helps to hold the captured dust when the filter is changed which is a definite bonus.

Thickness - 60mm
Average Weight - 280g/m2
Colour Inlet Side - Yellow
Colour Exhaust Side - White
Gravimetric Efficiency - 89%
Intake Air Velocity - 2.5 m/s
Initial Pressure Drop - 48Pa
Recommended Final Pressure Drop - 250Pa
Temperature Resistance - 120oC
Filtration Class - G3
Paint Holding Capacity - 422 g/m2
Fire – Non-combustible

Thickness - 110mm
Average Weight - 400g/m2
Colour Inlet Side - Yellow
Colour Exhaust Side - White
Gravimetric Efficiency - 89%
Intake Air Velocity - 1.5 m/s
Initial Pressure Drop - 33Pa
Recommended Final Pressure Drop - 250Pa
Temperature Resistance - 120oC
Filtration Class - G3
Paint Holding Capacity - 511 g/m2
Fire – Non-combustible

Can I use Progiallo with all types of paint?

You can use Progiallo with solvent-based paints and water-based paints or a mixture of both. The impregnated fibre will hold on to all types of paint particles as well as those from other types of product coatings and coarse dust particles caused during a manufacturing process.

Can I get this Progiallo in any other sizes?

We have four standard sized rolls which are 0.5-metre, 0.75-metre, 1-metre and 1.5-metre x 20-metres (h x l) and is classed as 2" thick (50mm). We also offer cut pads which are cut at 1-metre lengths (1-metre x 1-metre). We can also supply the rolls in a thickness of 4" (100mm) but this is a special size is only available for orders of 10 rolls or more. Please contact us for more information.

Which side is the front?

With all our fibreglass filtration products there is a back and a front. It may not always be obvious, but it is important that the product is fitted correctly so that you are getting the most efficient and effective filtration. Our Progiallo filter is no different and it is the yellow side that faces into the spray area or where the air is coming from.

The Progiallo is progressively built which means that the fibres are closer together the deeper into the filter you go. So, the fibres are closer together at the back of the filter than they are at the front. This is so that the larger overspray particles are held on the front of the filter whilst the smaller particles are held towards the back. If the filter is fitted, back to front, then it will block very quickly.

You have three different types of fibreglass filter. Which is best?

All of the filters are designed for a different purpose so it is a little unfair to ask which is best or to compare them directly however the Progiallo and the Profibre are similar to each other so to compare these two the Progiallo has a higher paint holding capacity and will hold onto dust particles that could be dislodged from the Profibre. Therefore the Progiallo could be seen as being a better product than the Profibre but it does come at a slightly higher price. The Propora has the highest paint holding capacity of all three products and can be used with water based paints but it is not impregnated.
