Bonded Carbon Panels

1310

Extraction panels for the finest filtration and ideal for absorbing odours and solvent fumes.  Used in many types of environment including for the air extracted from spray booths and product preparation areas.  Our panels are available in either 1 or 2 inch thickness.  We have a range of standard sizes but we can produce these panels to match your exact requirements.


Size
Thickness
Regular price £20.00 Sale price £16.57
/
+ VAT

Thanks for subscribing

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • In stock, ready to ship

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

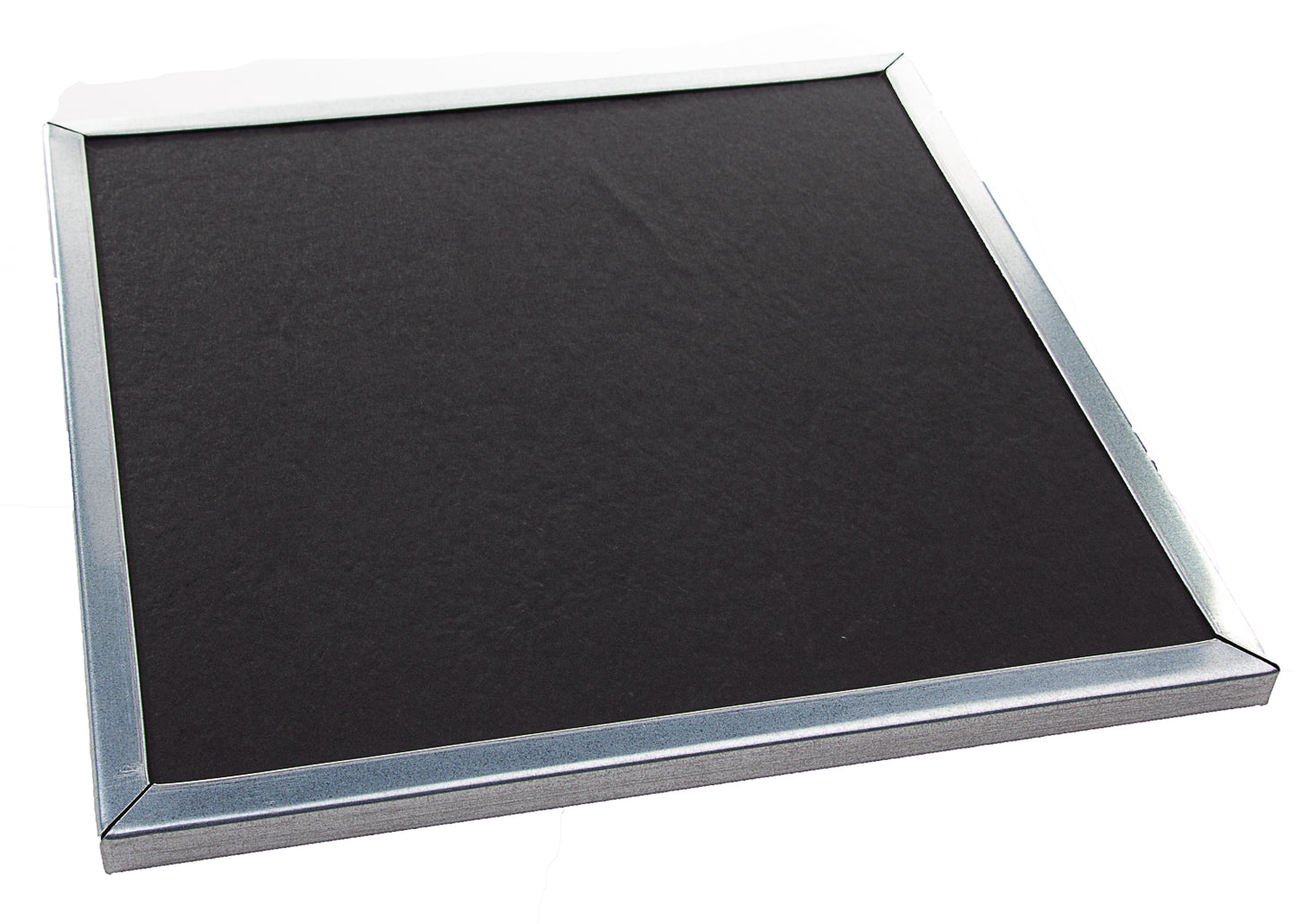

Carbon filter panel designed for the finest of air filtration. Our Bonded Activated Carbon Panels are designed to remove vapour/smell and the finest of particles from your air extraction. For use in a wide variety of air purification, vapour phase applications and for odour reduction, for example in catering establishments and commercial food preparation.

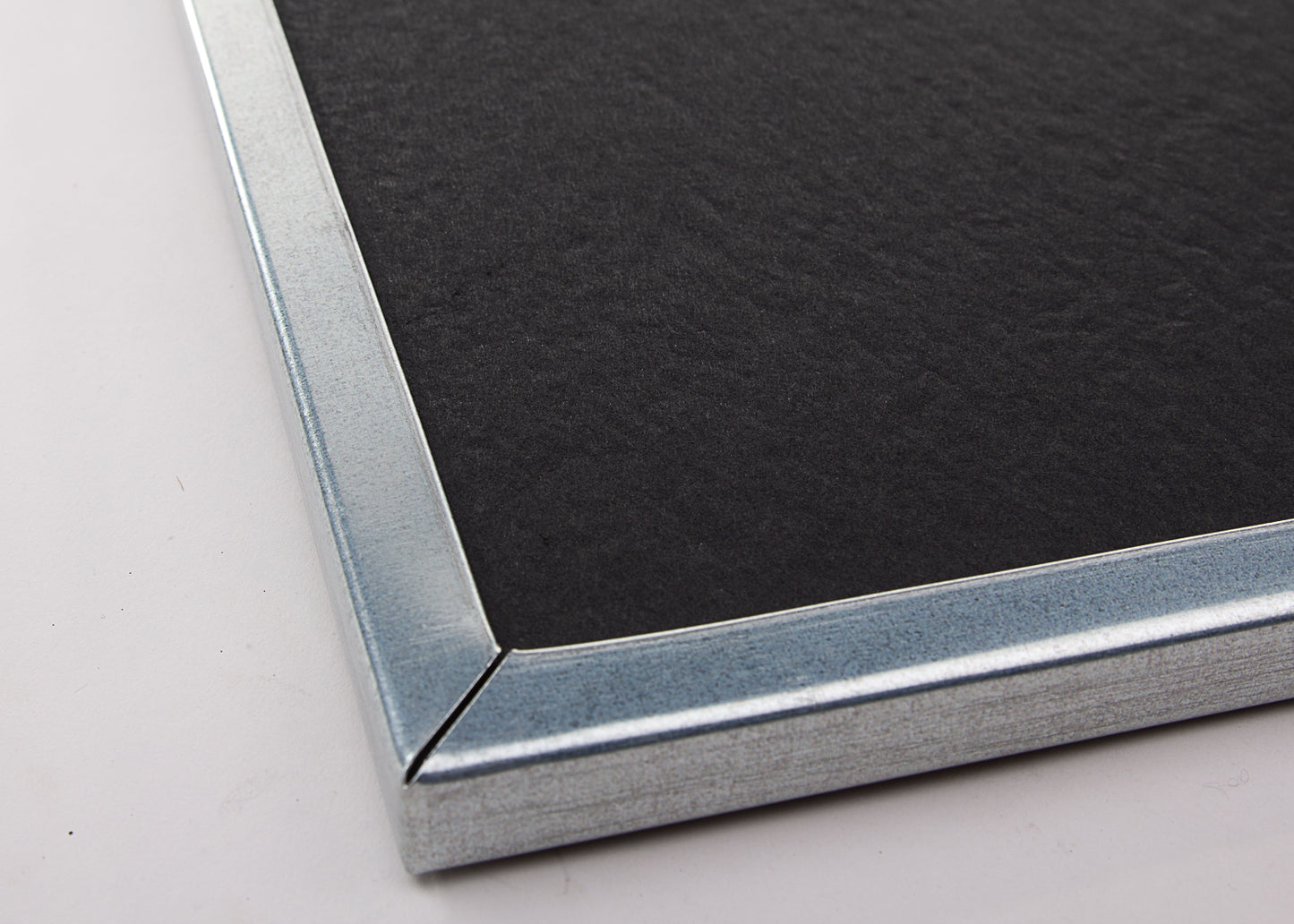

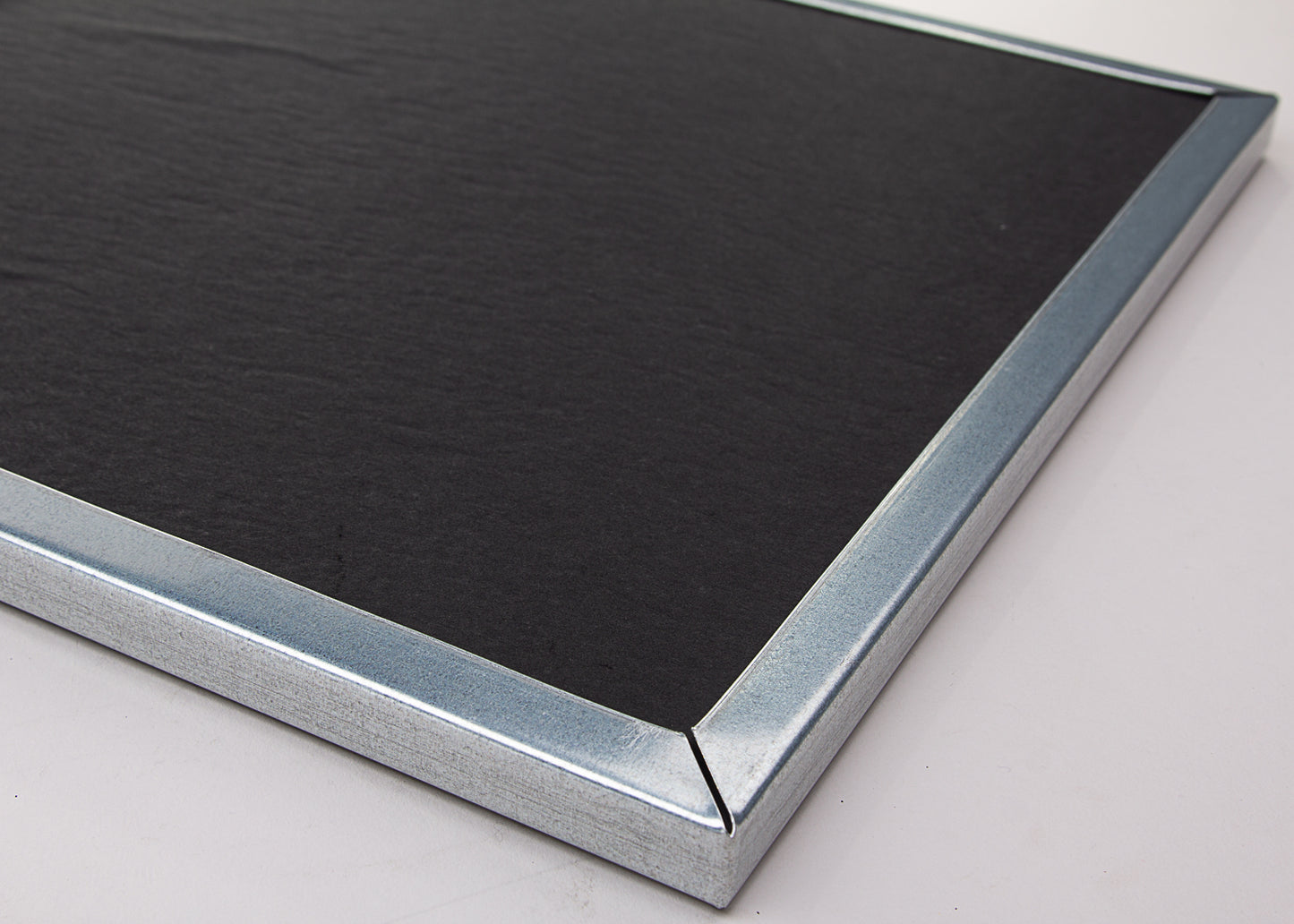

These panels are housed in an galvanised frame for both ease of use and the added security that your panel is well protected. BONDED CARBON air filters can be used for purifying inlet air or extracted air to remove toxic gasses and odour and are designed for simple installation into ducted air systems.

The difference between these BONDED CARBON filters and our standard carbon pleated panels is that these panels are manufactured with bonding techniques which sandwich the activated carbon granules encapsulated in a carbon impregnated cloth to prevent any leakage of granules or powder. The unique bonding method ensures that the high quality panels remain intact and rigid, even if wet. For filters over 45mm depth, the void is filled with loose activated granules which allows us to use optional special grades and combinations of formulated carbon.

OPTIONAL CARBON GRADES
- Good general carbon grade for most applications
- Copper coated carbon for use in museums and archives
- Enhanced garlic odour removal
- School grade for acid gasses and SO₂ HCL NO₂ H₂S
- Ammonia
- Mortuary grade, formaldehyde removal
- Caustic, potassium hydroxide impregnated
- Special formulation for sewage odours

Please contact our customer support team if you have a special requirement.

TYPICAL APPLICATIONS
- Reduction of cooking odours
- Removal of kerosene exhaust fumes
- General odour reduction
- Neutralisation of ammonia and its derivatives
- Removal of formaldehyde
- Removal of airborne pollutants and contaminants

Special sizes made to order - allow 2 weeks

12-150mm Standard Grade ACS , 50% CTC Rating. Benzene Rating 32%.

What is the difference between these panels and the standard Carbon Pleated Panels?

Although both the Bonded Carbon Panels and the Pleated Carbon Panels both contain carbon, the similarity ends there. The pleated panels are more comparable with the standard G4 pleated panels as they are both of the same basic design which is a pleated filter media housed in a cardboard frame. The carbon pleated panels have a thin layer of activated carbon on both sides of the filter media which will trap fumes however these are designed to be used in areas with very light contamination. The bonded panels are a completely different design and contain a much higher quantity of activated carbon so can be used in areas with high levels of contamination or areas with a high airflow or high usage.

★★★★★
★★★★★
★★★★★
