roll of synthetic fibre that is impregnated with carbon for removal of impurities from filtered air

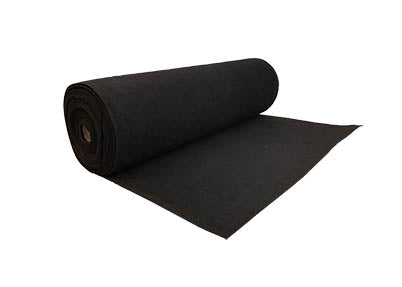

Carbon Impregnated Roll


This is a 100% polyester roll that is impregnated with activated carbon and is generally used as pre-filters in many different types of filtration application.  If required, this material is easily cut to provide bespoke filter sheets.  G4 & G3 filtration class with a continuous maximum working temperature of 50C.

Roll Size
Regular price £218.43

Thanks for subscribing

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • Hurry, only 10 items left!

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

This impregnated polyester fibre is easy to cut and has many filtration uses such as a general pre-filter or used with fan coil filters & heaters and convector heaters. There are two thickness options 3mm which is G4 filtration quality and 6mm which is G3.

Product Thickness: 3mm
Filter Class EN779:2012: G4
Filter Class ISO 16890 ISO Coarse >40%
Colour: Black
Description: Polyester material impregnated with activated carbon
Material Weight: 95g/m2
Initial Pressure Drop: 10Pa @ 1.5m/second
Maximum Operating Temperature: 50C continuous (120C maximum)

Product Thickness: 6mm
Filter Class EN779:2012: G3
Filter Class ISO 16890: ISO Coarse >40%
Colour: Black
Description: Polyester material impregnated with activated carbon
Material Weight: 275g/m2
Initial Pressure Drop: 18Pa @ 1.5m/second
Maximum Operating Temperature: 50C continuous (120C maximum)

How do I know which of your variants I should use?
Each of the different products will give a little further technical information about themselves however, if you would like to make contact with us, we can assist in the selection to help make sure you are using the product variant that is most suited to your needs.
