Energy Saver Panels

Energy Saver Panels

3033

Pleated air panels that give energy savings of up to 40% when compared to the use of standard panels.  Minimum order of 4 panels.

Size
Depth
/
+ VAT

Thanks for subscribing

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • Hurry, only 10 items left!

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

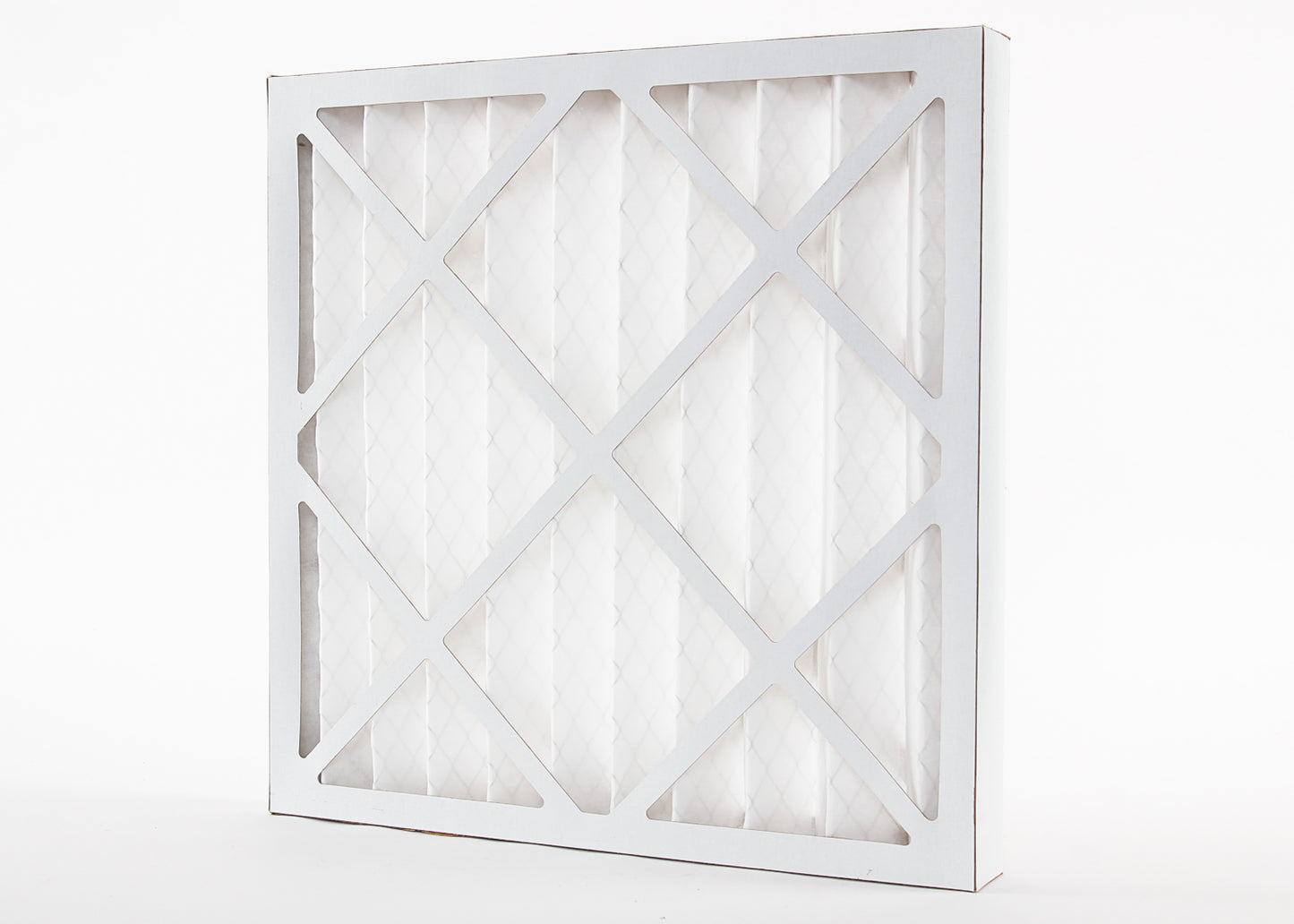

These energy saving pleated panels are a disposable filter with a water repellent cardboard frame that maintains strength even in cold weather and in areas with a higher than usual humidity level.

The pleated panel filter is a standard capacity disposable product offering a better than basic level of filtration, or pre-filtration in HEVAC applications. This product is made using patented filter media to give a constant level of filtration performance throughout its life and is made from continuous fibres so will not shed. The filter media also has a graduated density giving an even and greater holding of dust. It is also hydrophobic meaning that it will not load with air moisture which, if allowed, would reduce the lifespan of the panel. These panels offer energy saving up to 40% when compared to standard pleated panels so can give quite considerable cost reductions over their lifespan.

We offer a wide range of standard sizes however we can make them to bespoke sizes. If you would prefer this option then please just make contact with us and we can confirm prices for your exact requirements.


Classified G4 to EN779:2012

1 inch / 20mm Panels:
Initial Pressure Drop: 28Pa
Final Pressure Drop: 150Pa (recommended)
Filter Depth: 1 inch/20mm
Rated Airflow: 1.5m per second
Filter Class: ISO16890 - 75% coarse
Filter Class EN779 2012: G4
Initial Gravimetric Arrestance: 78%
Maximum Operating Temperature: Continuous 80C

Rated Volumetric Airflow:
10x10 inch (241x241mm) - 314 m3/hr
12x12 inch (292x292mm) - 460 m3/hr
15x15 inch (368x368mm) - 731 m3/hr
16x16 inch (394x394mm) - 838 m3/hr
18x18 inch (445x445mm) - 1069 m3/hr
24x24 inch (594x594mm) - 1905 m3/hr
25x16 inch (622x394mm) - 1323 m3/hr
25x20 inch (622x495mm) - 1663 m3/hr



2 inch / 45mm Panels:
Initial Pressure Drop: 52Pa
Final Pressure Drop: 200Pa (recommended)
Filter Depth: 2 inch/45mm
Rated Airflow: 2.76m per second
Filter Class: ISO16890 - 75% coarse
Filter Class EN779 2012: G4
Initial Gravimetric Arrestance: 78%
Maximum Operating Temperature: Continuous 80C

Rated Volumetric Airflow:
10x10 inch (241x241mm) - 560 m3/hr
12x12 inch (292x292mm) - 820 m3/hr
15x15 inch (368x368mm) - 1305 m3/hr
16x16 inch (394x394mm) - 1495 m3/hr
18x18 inch (445x445mm) - 1905 m3/hr
24x24 inch (594x594mm) - 3400 m3/hr
25x16 inch (622x394mm) - 2360 m3/hr
25x20 inch (622x495mm) - 2965 m3/hr



4 inch / 95mm Panels:
Initial Pressure Drop: 43Pa
Final Pressure Drop: 200Pa (recommended)
Filter Depth: 4 inch/95mm
Rated Airflow: 2.76m per second
Filter Class: ISO16890 - 75% coarse
Filter Class EN779 2012: G4
Initial Gravimetric Arrestance: 78%
Maximum Operating Temperature: Continuous 80C

Rated Volumetric Airflow:
10x10 inch (241x241mm) - 560 m3/hr
12x12 inch (292x292mm) - 820 m3/hr
15x15 inch (368x368mm) - 1305 m3/hr
16x16 inch (394x394mm) - 1495 m3/hr
18x18 inch (445x445mm) - 1905 m3/hr
24x24 inch (594x594mm) - 3400 m3/hr
25x16 inch (622x394mm) - 2360 m3/hr
25x20 inch (622x495mm) - 2965 m3/hr

HOW DO THESE PANELS SAVE ENERGY?
The panels reduce energy consumption as the filters offer less air resistance when compared our standard pleated panels. This means that your fans are not having to work as hard to maintain an operating airflow therefore you use less electricity. The reduction in electricity consumption can be quite considerable with tests showing up to 40% reduction.

ARE THESE PANELS AS GOOD AS YOUR STANDARD PLEATED PANELS?
These panels offer the same filtration level as our standard pleated panel so you should notice no difference in either fitting or using the panels.

★★★★★
★★★★★
★★★★★
