Procart H

0192

PROCART H is a spray booth filter that has an additional filtration layer attached to the back of the filter to increase the filtration quality from our standard Procart B.




Size
/
+ VAT

Thanks for subscribing

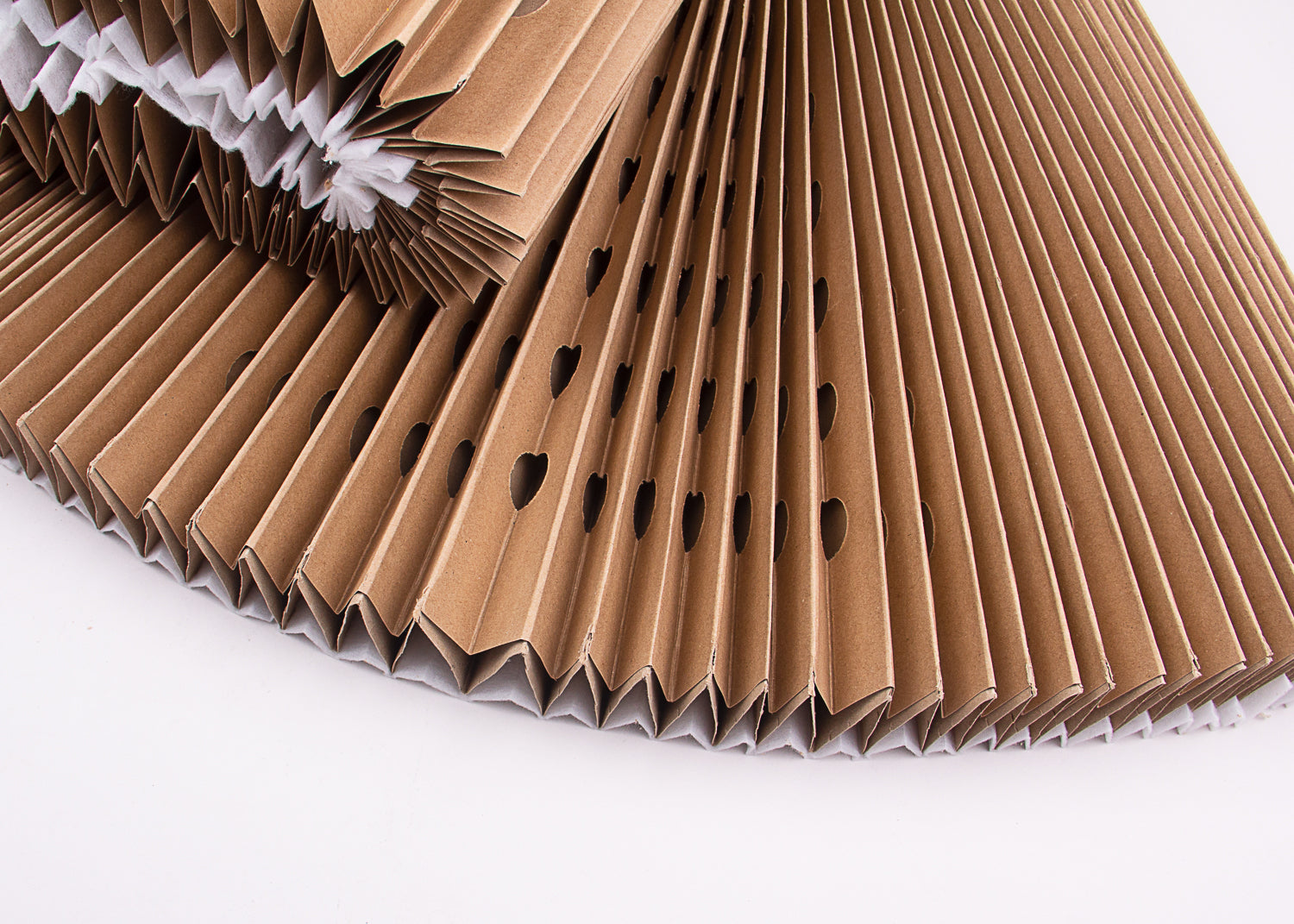

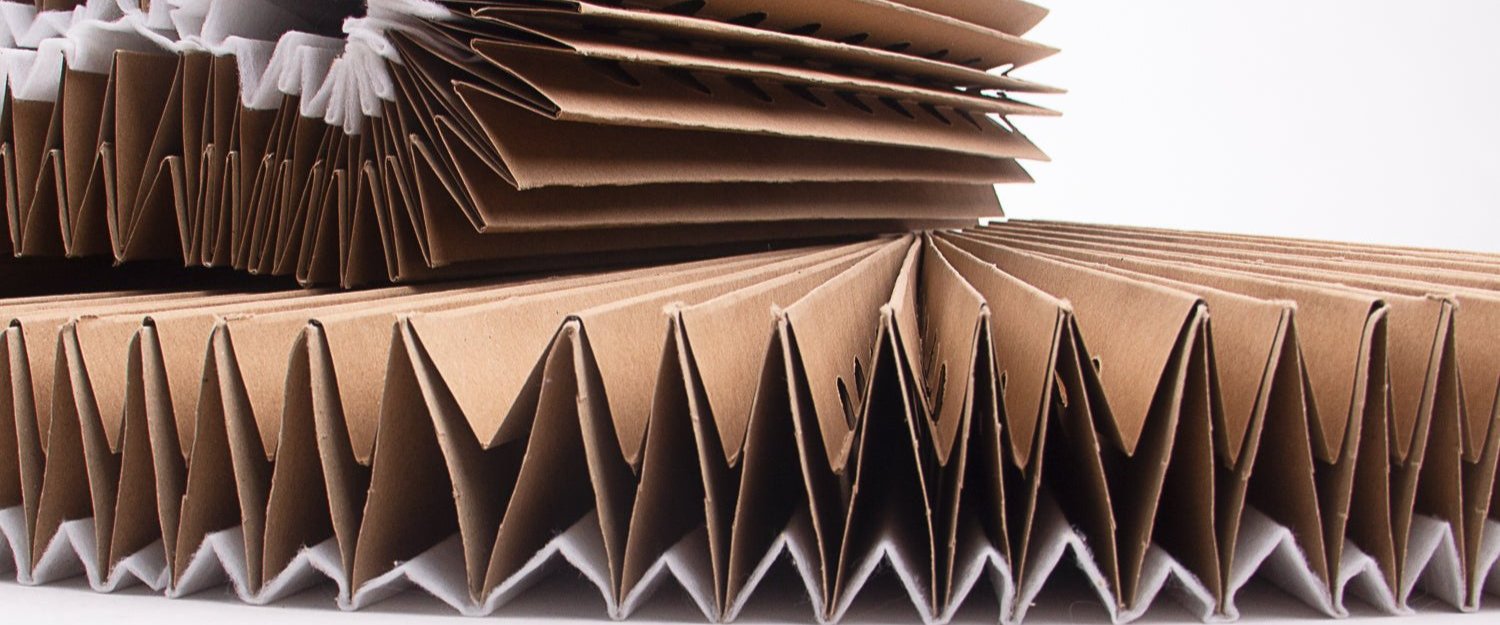

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • In stock, ready to ship

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

As a high efficiency spray booth filter, the Procart H is designed to work with both water-based & solvent paints as well as powder paints and even dust. The additional filtration layer also helps if your spray booth has a higher than recommended air speed or if you are unable to spray the recommended distance from the filter.

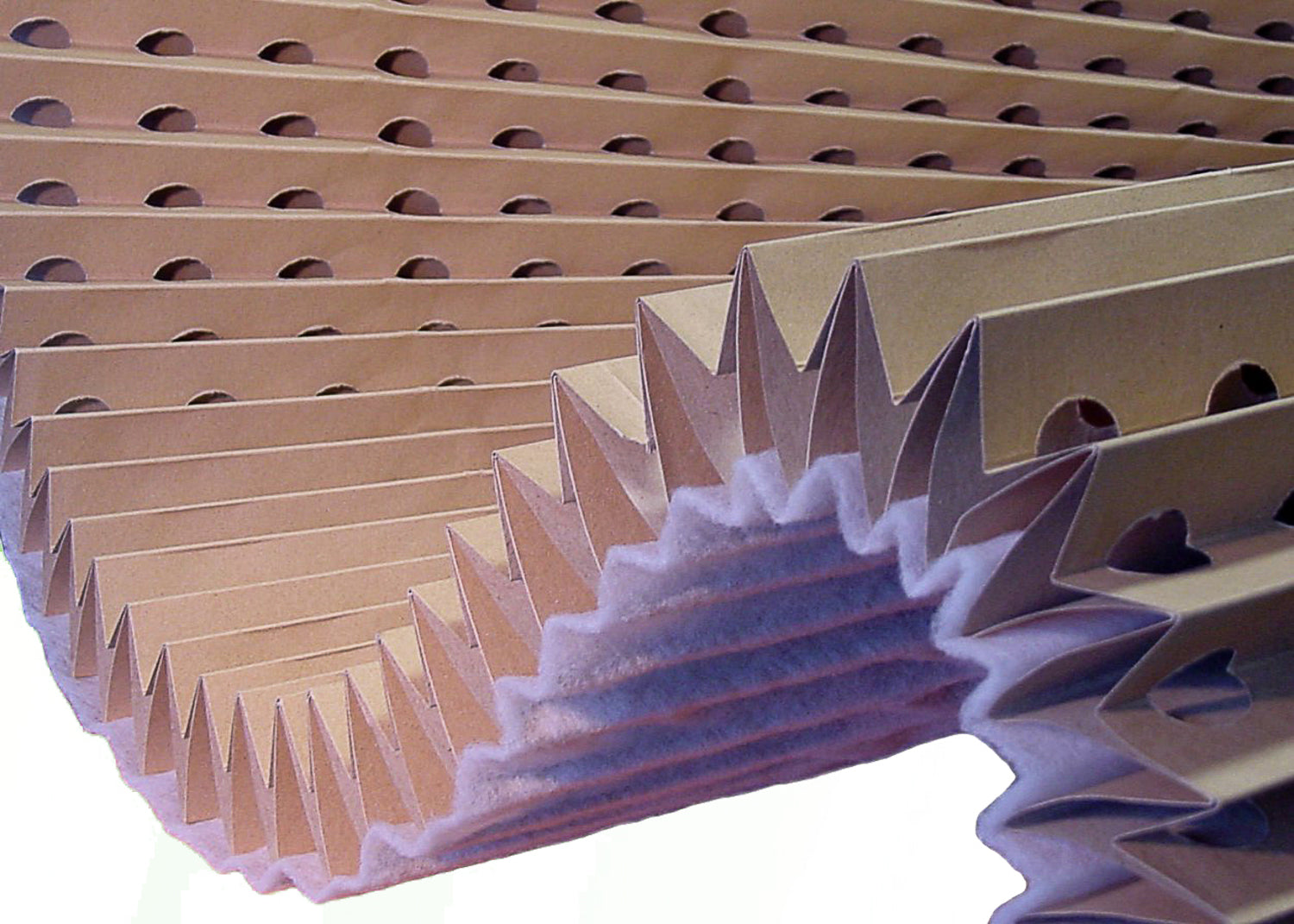

Being of the same basic design as our standard Procart spray booth filter filter, the paint overspray is captured in the same way but with the added benefit of the secondary layer. This will capture and hold paint or dust particles that are either too light or dry to be captured in the main body of the filter.

Our Procart H filter is the ideal option if you have a higher than normal airflow, use dry/dusty paint, use a mixture of wet and powder paints or have to achieve a very high filtration quality due to certain exterior restrictions.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

DEPTH: 57mm
RECOMMENDED AIRSPEED: 0.5—1 m/s
PRESSURE DROP: 13 PA at 0.5 m/s
LOSS OF AIRSPEED AT NEW: 0.5mm for 0.75 m/s (4.91 PA)
PAINT HOLDING CAPACITY: 12kg/m2
FILTRATION EFFICIENCY: 98.2%
MAXIMUM LOSS OF AIRSPEED: 9.0mm for 0.75 m/s (88.3 PA)
DIMENSIONS: 0.9 x 9.0-metres

How do I know how much filter to put into my booth?

Our Procart H should be fitted at a minimum of 26 folds per meter. This means that if your booth measures 2-metres wide then you would need to count 2 x 26 folds (52 folds) plus a couple of extra couple of folds to hold the filter at each end. However, don't feel that you must stick to 26 folds regardless. 26 folds per metre is a minimum and can be increased to allow for individual circumstances such as a very high airflow.

You mention a maximum airflow, what is it?

The recommended maximum airflow is 1-metre per second (m/s). If your airflow is higher than this then it doesn't mean that you can't use the filter but it does mean that you may have to make some slight changes to ensure you have the best filtration quality. The easiest change to make is to increase the number of folds per metre. Even a small increase of 2 or 3 folds per meter will make a noticeable difference.

How do I measure the airflow?

You can buy an anemometer which will give you an accurate reading. If you don't have an anemometer there are a couple of 'homemade' methods to tell if your airflow is too fast. One method is once the filters have been installed, turn on the fan and stand with your back to the filters. Once the air has settled you should feel a very slight temperature drop and draft on your face. You shouldn't find yourself stuck to the filters. If this happens then the airflow is a little on the high side.

I spray powder and wet spray, can I use the Procart H?

If you are spraying a mixture of paints then the Procart H is probably the better option for you. We don't recommend the Procart B for using with powder paints however both the Procart B and Procart H can be used with standard wet spray so a mixture of both would be better with the Procart H.

Procart H Technical Information Sheet
