Procart KH

0204

Multiple layers of filtration paper plus a fibre layer. Higher paint holding capacity than fibreglass paint-stop so lasts longer and has better filtration.

Size
Regular price £98.96
/
+ VAT

Thanks for subscribing

The folded 'accordion' design, of this Procart B spray booth filter, ensures a high paint holding capacity whilst maintaining maximum airflow for much longer than many types of air filtration alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

This Procart spray booth filter is designed to filter all types of water and solvent based paints and other types of coating but not powder paints or dust (for this we recommend the use of our Procart M2 or Procart H booth filters). With this design of paper filter your overspray is captured on both on the face of the filter and within the folds which allows the booth air to pass through the filter with minimal obstruction until full, thus a constant, smooth airflow is maintained for much longer than using other types of extraction filtration. What is so important about airflow? Without it you don't have a proper functioning spray booth and you won't be able to produce a proper finish so a good airflow is vital to the running of your spray booth.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint traveling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to tell us your requirements then this is fine however you can still purchase your filters here.

  • Hurry, only 17 items left!

  • cash
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

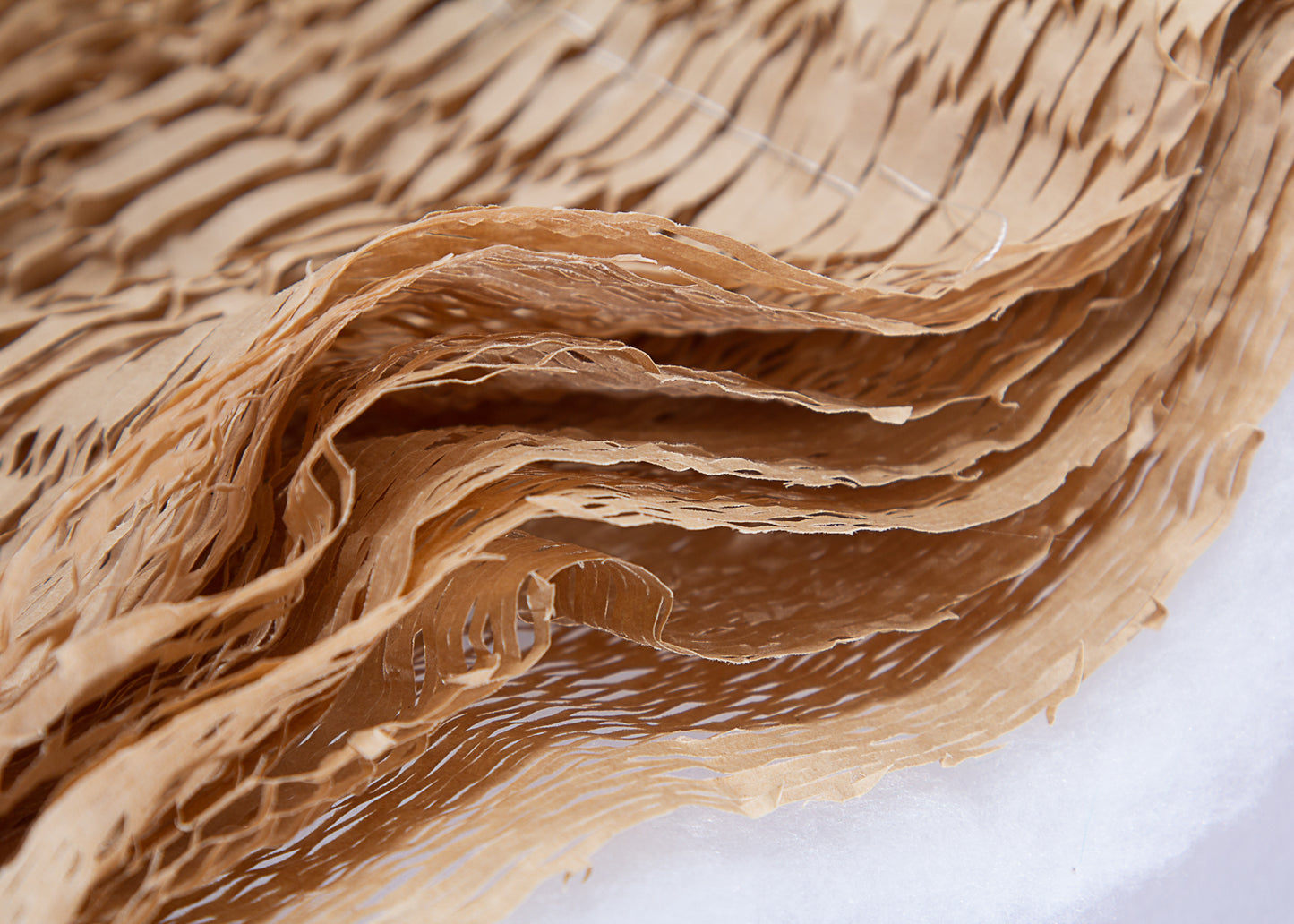

Our Procart KH spray booth filter combines very high paint holding capacity, multiple layers of shaped and formed Kraft paper which allows for very high paint holding capacity and the finest filtration of all types of solvent and water-based paints (powders, varnish, lacquers & glues).

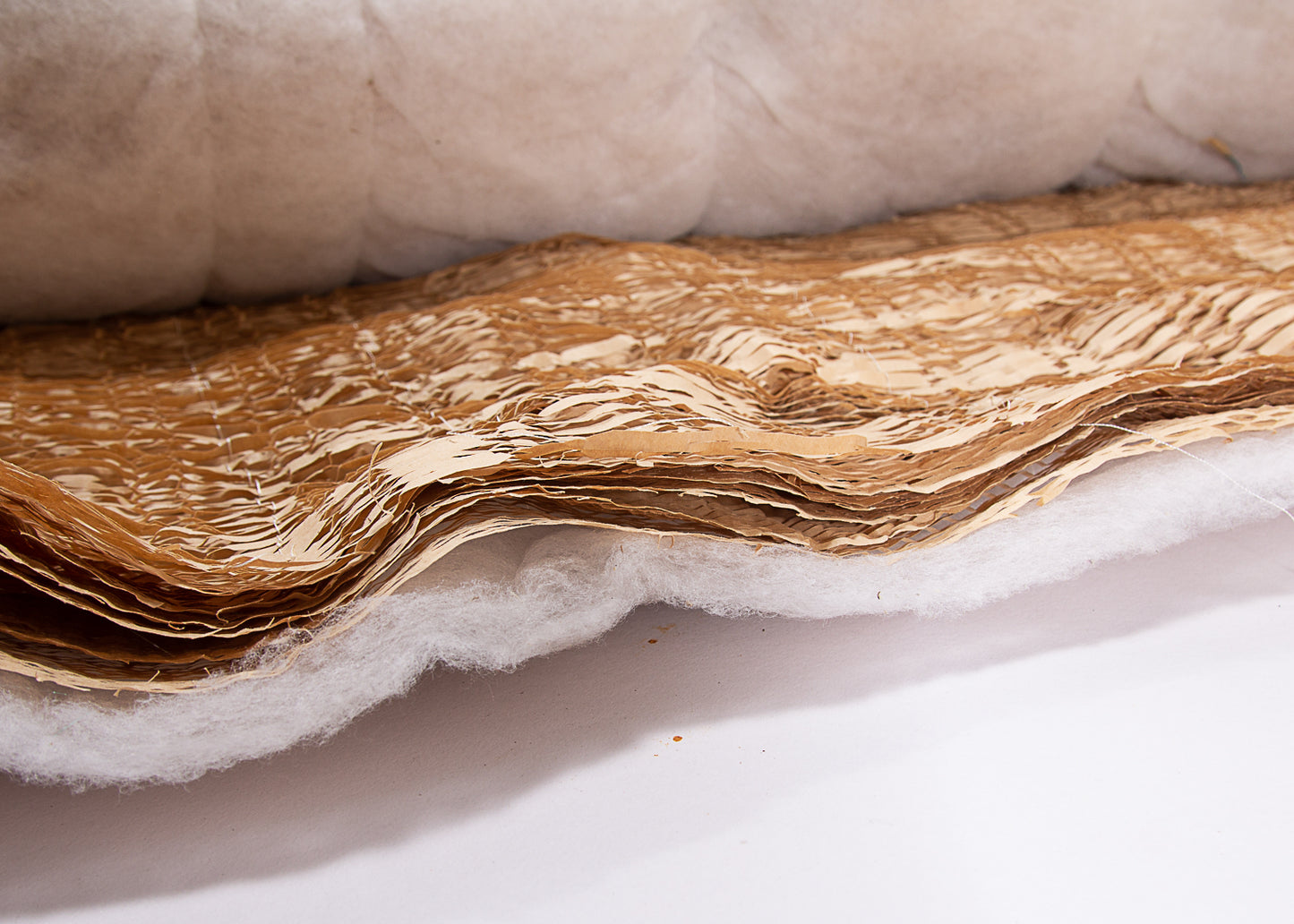

Procart KH consists of 5 layers of formed filtration paper plus 1 layer of media = 6 layers

The Procart KH is the most viable replacement for our Profibre (also known as paint-stop) green & white fibreglass rolls as they offer superior filtration, are longer lasting, easier to store, non combustible, dust free & safer to handle.

When we say longer lasting we really do mean longer lasting. Our Procart K booth filters will last 2-3 times longer than paint-stop (Profibre) and last with no sufficient drop in airflow until the filter is full. One of the main, paint filtration, problems with paint-stop is that the airflow drops very quickly once spraying starts. Procart K maintains the airflow whilst holding the overspray so you can continue to use the filter until the maximum retention has been reached.

Advantages:

Fine Filtration - For water-based or solvent based products, thermosetting paints or lacquers the filtration efficiency is 96%.

Load Loss & Constant Air Flow - The design and composition of the Procart K allows them to maintain a low load loss and airflow drop regardless of how dirty the filters are. With very little air resistance the Procart K allows for free circulation of air.

Quality Guarantee - Our primary concern is the overall quality of our products. As such the manufacturing process for the Procart K is fully automatic which gives us the highest manufacturing standards and the best operating filters for you.

Environmentally Friendly - Our Procart K spray booth filters are produced from natural & biodegradable products only. Due to the high efficiency and high load capacity these filters are long lasting so fewer filters are required annually. A saving for you and the environment.

Easy to Use - The Procart K is manufactured from natural products. The Kraft paper used is easy to cut and easy to install. It is free from dust and there are no fibres to cause irritation that many suffer from when installing standard fibreglass filtration rolls. Another saving for you is space....each roll of Procart K is supplied boxed therefore making storage easier then bagged rolls.



FILTRATION LAYERS:5
DEPTH: 16mm
RECOMMENDED AIRSPEED: 0.5—1 m/s
RETENTION CAPACITY: 6 - 8kg per m2
LOAD LOSS (new - mm of water column): 0.4 at 0.5m/s (3.9 PA)
LOAD LOSS (new - mm of water column): 0.8 at 0.75m/s (7.8 PA)
LOAD LOSS (new - mm of water column): 1.2 at 1m/s (11.8 PA)
LOAD LOSS (new - mm of water column): 3.5 at 2m/s (34.3 PA)
MAXIMUM LOAD LOSS (mm of water column): 15 at 0.75 m/s (147 PA)
DIMENSIONS: 1.1mtr x 12mtr

FILTRATION LAYERS: 7
DEPTH: 25mm
RECOMMENDED AIRSPEED: 0.5—1 m/s
RETENTION CAPACITY: 12-15kg per m2
LOAD LOSS (new - mm of water column): 0.4 at 0.5m/s (3.9 PA)
LOAD LOSS (new - mm of water column): 0.8 at 0.75m/s (7.8 PA)
LOAD LOSS (new - mm of water column): 1.2 at 1m/s (11.8 PA)
LOAD LOSS (new - mm of water column): 3.5 at 2m/s (34.3 PA)
MAXIMUM LOAD LOSS (mm of water column): 15 at 0.75 m/s (147 PA)
DIMENSIONS: 1.1mtr x 10mtr

WHAT CHANGES DO I NEED TO MAKE IF I MOVE FROM FIBREGLASS TO THE PROCART K RANGE?
You shouldn't need to make any changes to your booth or spray area if you are currently using our Profibre or other fibreglass or paint-stop materials. As the Procart K filters are supplied on a roll (as are the fibreglass products) they are fitted in the same way as your current filter type.


WHY DOES THE PROCART K HAVE SUCH A HIGH PAINT HOLDING CAPACITY COMPARED TO THE FIBREGLASS?
The Procart K is made from a type of absorbent paper which is the big difference between the Procart K and fibreglass filters. The 'K' is made from absorbent materials so will hold the paint overspray as opposed to the fibreglass that is not absorbent. If you consider that the whole point of a booth filter is to remove overspray and allow air to flow. This is what the Procart K does and does it very well.


THE PROCART K COSTS MORE THAN THE PROFIBRE SO WHY SHOULD I USE IT?
The Procart KH does cost more to purchase but it lasts much longer and is a far more efficient filter. If a comparison is to be made, then it really should be made between the filtration quality of the filters rather than on price alone. However, if price is the determining factor then firstly the Procart KH should be compared to the 100mm Profibre.

The m2 price of the Procart KH is around double that of the 100mm Profibre however the paint holding capacity is 2 - 3 time greater which means far less frequent changes which saves a lot of time both in the fitting and cleaning. Less changes also means that you purchase less product which saves on storage space and delivery costs. As the Procart KH is absorbent it holds onto the dust so changing causes far less mess, again, meaning less cleaning. It also means that far less dust will pass through the filter meaning less dust on your fan and less dust going outside.
