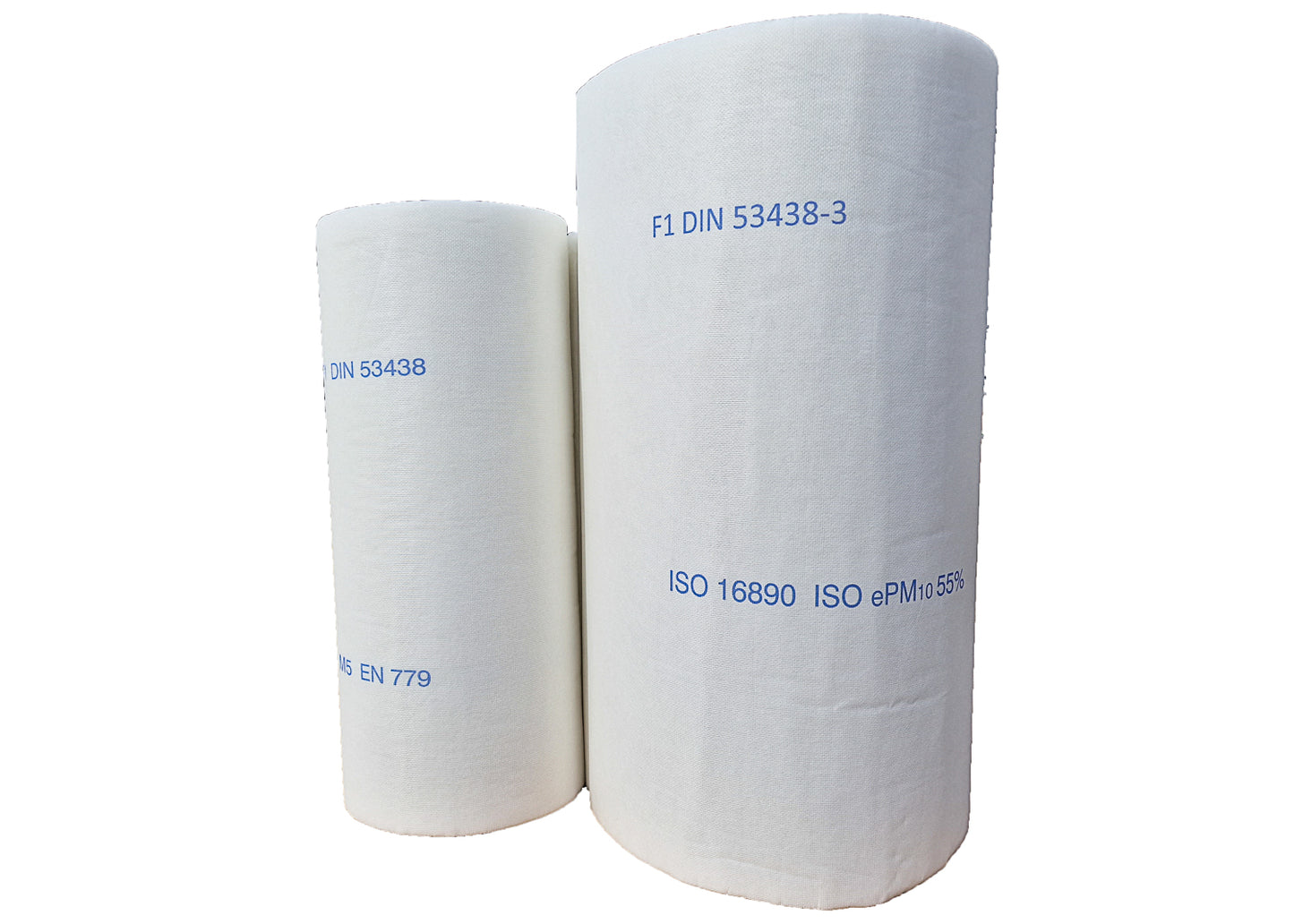

Protop 600 Air Input Filter

Protop 600 Air Input Filter

SKU:0221

The most important filtration within an enclosed spray booth or preparation area is the filtration of the air ENTERING the booth. This element is quite often forgotten, however filtering the air going into the booth is vital for the quality of the finished item.



Regular price £156.99
Regular price Discount Price £156.99
Multi Discount Sold out
Shipping calculated at checkout.

+ VAT

Quantity
View full details

This is an absolute must with many types of booth especially spray bake ovens, car body shops and the painting of high gloss finishes. This roll is impregnated with a mild tacky coating designed to stop dust particles that may become dislodged due to vibration.

This is the recommended filtration media for all types of balanced booths and especially booths within car body shops.

Product Specification

Product weight - 500g/m2
Product thickness - 20mm
Arrestance - 98% (DIN24185/BS6540)
Nominal air volume - 900m3/hour
Air velocity - 0.25m/s
Initial pressure drop - 23 Pa
Final pressure drop - 450 Pa
Maximum temperature - 100oC
Maximum humidity - 100%
Filter classification - M5
Dust holding capacity - 324g/m2
Wash - No
Reaction to fire - DIN 53 438-3 - F1
DIN 4102-1 - B2
Flammability - Class 1 Self Extinguishing

Notes -
DIN 53438 – Parts 1-3 Testing the material for its reaction to the flame of a gas burner. Once tested, the material is awarded one of three classes:
Class F1 - the spread of flame does not reach the mark 150mm above the flame.
Class F2 - the spread of flame takes in excess of 20 seconds to reach the mark 150mm above the flame point on the material.
Class F3 - the spread of flame reaches the mark in less than 20 seconds.

Technical Information

Frequently Asked Questions

Which way should the Protop be fitted?

You will find that our Protop has a scrim on one side and this side should face into the booth.

Is Protop easy for me to cut to the right size for my booth?

Yes, but make sure to place the Protop on a clean surface before cutting. As it is slightly tacky, Protop will hold any dirt that it comes into contact with so keeping it clean whilst cutting is important. You will be able to cut it with a knife or a quality pair of scissors.

Will Protop fit any booth?

Protop can certainly be fitted to any booth however unless a booth is designed to work with it you may find that your booth will struggle for airflow as Protop is a very high-quality filter. Normally Protop is used in balanced booths or booths with a very high potential airflow. If you can't use Protop then we would suggest using our Pleated Panels or Proprep. If you would like any further information, then please just contact us.
